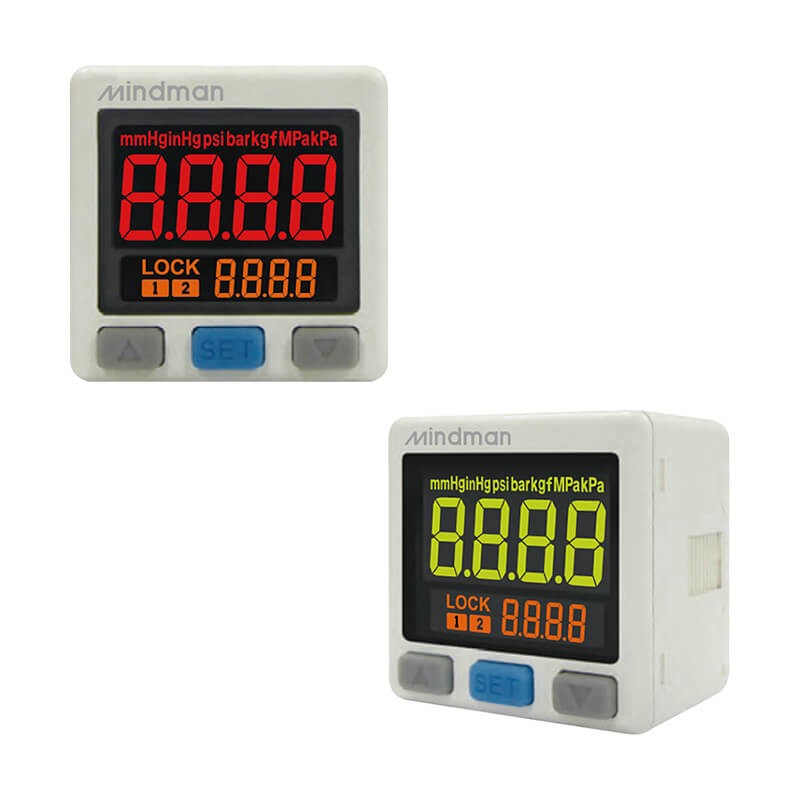

PRESOSTATO DIGITAL

Reseña(0)

El presostato controla el nivel de presión de alta del circuito de A/C; activa o desactiva el compresor de acuerdo con dos limites de presión.

PRESOSTATO DIGITAL 0-150PSI (1MPa) 12~24VDC CNX. 1/8"

Politica de Seguridad(Pagos seguros por nuestra plataforma)
Politica de Envios(Como enviaremos tus pedidos.?)
Politica de Devolución(Como podrás devolver tus pedidos)

Nuevo

Port size	F1: R1/8", M5×0.8; F2: NPT1/8",#10-32UNF; F3: G1/8"(BSPP), M5×0.8; M5 female thread
Rated pressure range	－0.1 ~ 1.0 MPa (Positive) －101.3 ~ 0 kPa (Vacuum) －100 ~ 100 kPa (Compound)
Operating / Setting pressure range	－0.103 ~ 1.03 MPa (Positive) －103 ~ 10 kPa (Vacuum) －103 ~ 103 kPa (Compound)
Proof pressure	1.5 MPa (Positive), 500 kPa (Vacuum, Compound)
Medium	Filtered air, Non-corrosive / Non-flammable gas
Power supply voltage	12~24V DC ±10%, Ripple (P-P) 10% or less
Current consumption	≦ 30mA (With no load)
Switch output	NPN: open collector outputs Max. load current: 80mA Max. supply voltage: 30V DC Residual voltage: ≤ 1V PNP: open collector outputs Max. load current: 80mA Max. supply voltage: 24V DC Residual voltage: ≤ 1V
Hysteresis	Adjustable (※1)
Response time	≦2.5ms (chattering-proof function: 25ms, 100ms, 250ms, 500ms, 1000ms, 1500ms selectable)
Output short circuit protection	Yes
Display	4 digital, 7 segment LCD display ( Red / Green / Orange ) ( Sampling rate : 0.2, 0.5, 1 sec. / time )
Indicator accuracy	±1% F.S. ±1 digit (ambient temperature: 25 ± 3°C)
Repeatability	±0.3% F.S. ±1 digit
Switch ON Indicator	Orange indicator 1: OUT1 & Orange indicator 2: OUT2
Analog output (Voltage Output) (within rated pressure range)	(Vacuum, Compound) Output Voltage: 1 ~ 5V ±2.5%F.S. Linearity: ±1% F.S. Output impedance: about 1kΩ
Analog output (Voltage Output) (within rated pressure range)	(Positive) Output Voltage: 0.6 ~ 5V ±2.5%F.S. Linearity: ±1% F.S. Output impedance: about 1kΩ
Enclosure classification	IP40
Ambient temp. range	Operation : 0 ~ 50℃, Storage :－10 ~ 60 ℃ (No condensation or freezing)
Ambient humidity range	Operation/Storage: 35 ~ 85% RH (No condensation)
Withstand voltage	1000V AC in 1-min (between case and lead wire)
Insulation resistance	50MΩ (at 500V DC, between case and lead wire)
Vibration	Total amplitude 1.5mm or 10G,10Hz-150Hz-10Hz scan for 1 minute, 2 hours each direction of X, Y and Z
Shock	100m/s2 (10G), 3 times each in direction of X, Y and Z
Tmperature charateristic	±2% F.S. of detected pressure 25°C at temp. Range of 0~50°C
Lead wire	ø4 Oil-resistance cable ( PVC ) - 26 AWG ( 0.15 mm2 ) - 4 cores
Weight	Approx. 67g (with 2 meter lead wire)
Remark	※1.Hysteresis value is adjustable within 1~8 digits for one point set and window comparator mode.
